Issue 74

01 Flash Archive · Members Only

Russia Launches New Imaging Satellite

26 May 2023: Russia launched a new SAR imaging satellite, the Kondor-FKA n°1,from Vostochny Cosmodrome. The Kondor satellites are a series of Earth observation satellites providing reconnaissance services for the Russian military. Launch Video & Soyuz Stacking Video . - Kondor-FKA n°1 has been given the name Cosmos…

Author Greg Gillinger Published August 1, 2025

– Kondor-FKA n°1 has been given the name Cosmos 2569 and is in a 508x506km sun-synchronous orbit.

– The Kondor satellites feature an S-band synthetic aperture radar (SAR), conducting both continuous swath surveys and detailed spot surveys of Earth’s surface. The width of the SAR’s swath is 10km with a ground resolution of 1-2m in spotlight mode, 1-3m in strip-map mode, and 5-30m while in ScanSAR mode.

– Kondor-FKA will assist Russia in its war against Ukraine. It makes two passes over Ukraine each day and can make radar images of “Ukrainian military objects” with a resolution of 1m.

– Officially, Kondor-FKA is a civilian satellite ordered by Roskosmos, but in the current circumstances it may well become a dual-purpose satellite.

– The only other positively identified Russian radar satellite currently in orbit is Kosmos-2550 (Pion-NKS), but this is mainly intended to provide targeting data for anti-ship missiles. However, it is quite likely that Kosmos-2553 (Neitron) is also a military radar satellite. Like Kondor-FKA, this is a product of NPO Mashinostroyeniya and appears to use the Kondor bus. In fact, it may have been used to test various new systems flown aboard Kondor-FKA. Kosmos-2553 does circle the globe in a significantly higher orbit (about 2000 km) inclined 67° to the equator.

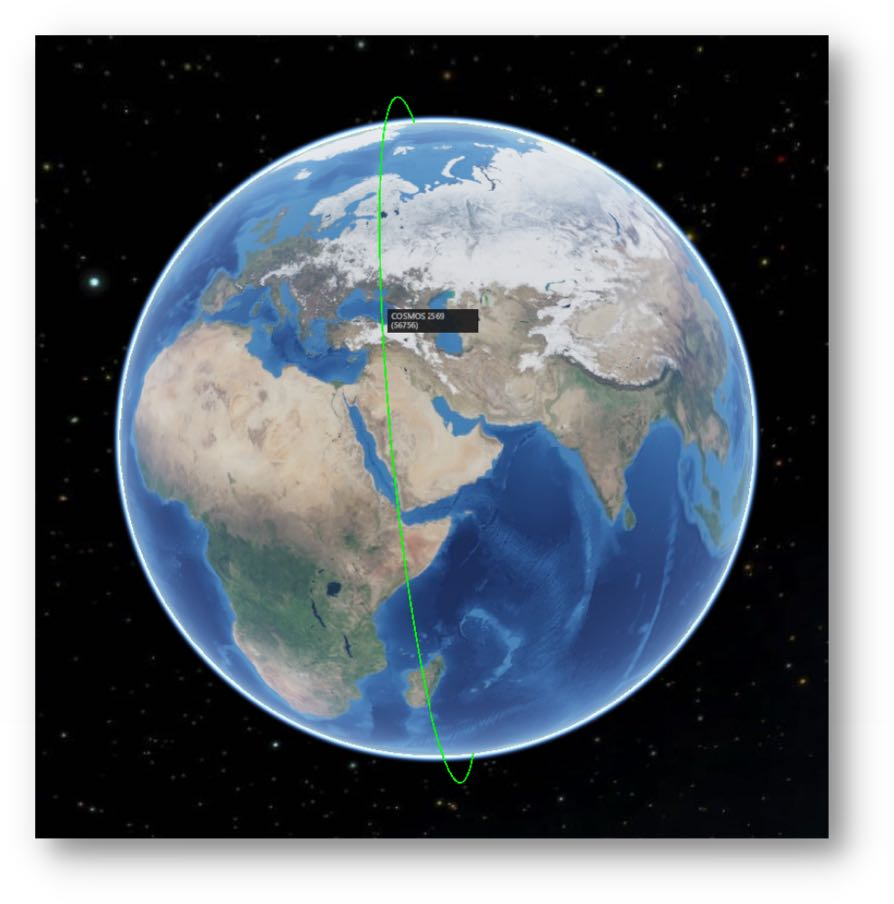

Kondor-FKA n°1 / Kosmos-2569 orbit

Kondor in protective cage and attached to the Briz upper stage

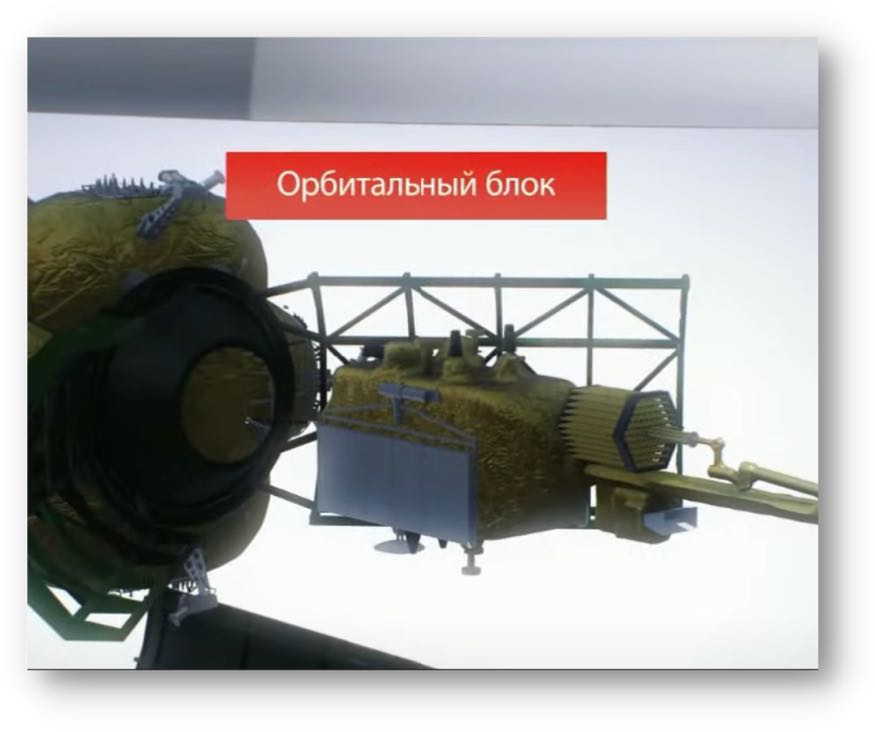

Rendering of Kondor deployment with the upper stage remaining attached to the Briz upper stage

Recent Kondor briefing slide

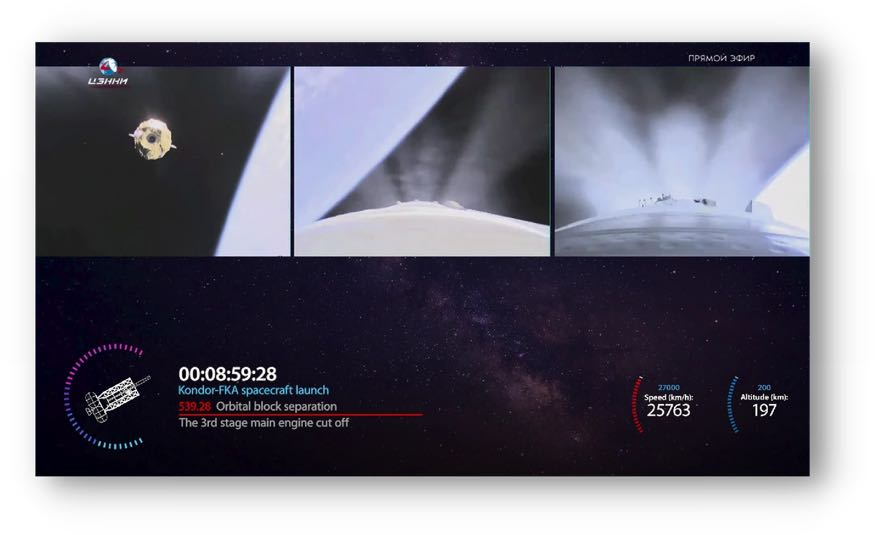

Kondor-FKA third-stage cut-off

02 Flash Archive · Members Only

India Launches Next Gen Navigation Satellite

28 May 2023: India launched a NVS-01 navigation satellite using a Geosynchronous Satellite Launch Vehicle (GSLV) Mk.11 rocket from the Satish Dhawan Space Centre. NVS-01 is the first of India's second-generation NavIC satellites and is equipped with new Indian-developed atomic clocks. Launch Video. Satellite Deployment…

Author Greg Gillinger Published August 1, 2025

28 May 2023: India launched a NVS-01 navigation satellite using a Geosynchronous Satellite Launch Vehicle (GSLV) Mk.11 rocket from the Satish Dhawan Space Centre. NVS-01 is the first of India’s second-generation NavIC satellites and is equipped with new Indian-developed atomic clocks. Launch Video. Satellite Deployment Video.

– The Navigation with Indian Constellation (NavIC), system is a regional satellite navigation network developed by the Indian Space Research Organisation (ISRO). Also known as the Indian Regional Navigation Satellite System (IRNSS), the system’s first generation consists of seven satellites in geosynchronous orbit — although a total of nine spacecraft have been launched, including replacements.

– IRNSS-1A, the first satellite in the series,

was launched in Jul 2013, with the constellation reaching its full complement following the launch of IRNSS-1G in Apr 2016. After three years in orbit, the atomic clocks aboard IRNSS-1A began to develop faults, and IRNSS-1H was launched as a replacement in Augt 2017. This did not reach orbit after the payload fairing of its carrier rocket failed to separate, so IRNSS-1I was deployed instead in Apr 2018, becoming the final first-generation IRNSS satellite to launch.

– ISRO has confirmed the failure of several other clocks across other satellites in the fleet. ISRO’s annual report for 2020-21 noted that the IRNSS-1G satellite had also been moved to a secondary role, but did not identify the reason for this. NVS-01 is expected to take IRNSS-1G’s slot in the constellation.

-Accurate timekeeping provided by atomic clocks is vital to operating navigation satellites, as the signals they broadcast contain timestamps. Receivers use these timestamps, and the knowledge that radio signals propagate at the speed of light, to calculate distance to the satellites and triangulate their position based on the signals and relative positions of multiple satellites.

-NVS-01 is also over 900kg heavier than the first-generation satellites and incorporates other enhancements to expand the capabilities of the NavIC constellation. These include broadcast of a new L1 signal, in addition to the L5 and S-band signals broadcast by the existing satellites, which will improve interoperability with other satellite navigation systems such as the US Global Positioning System (GPS) network.

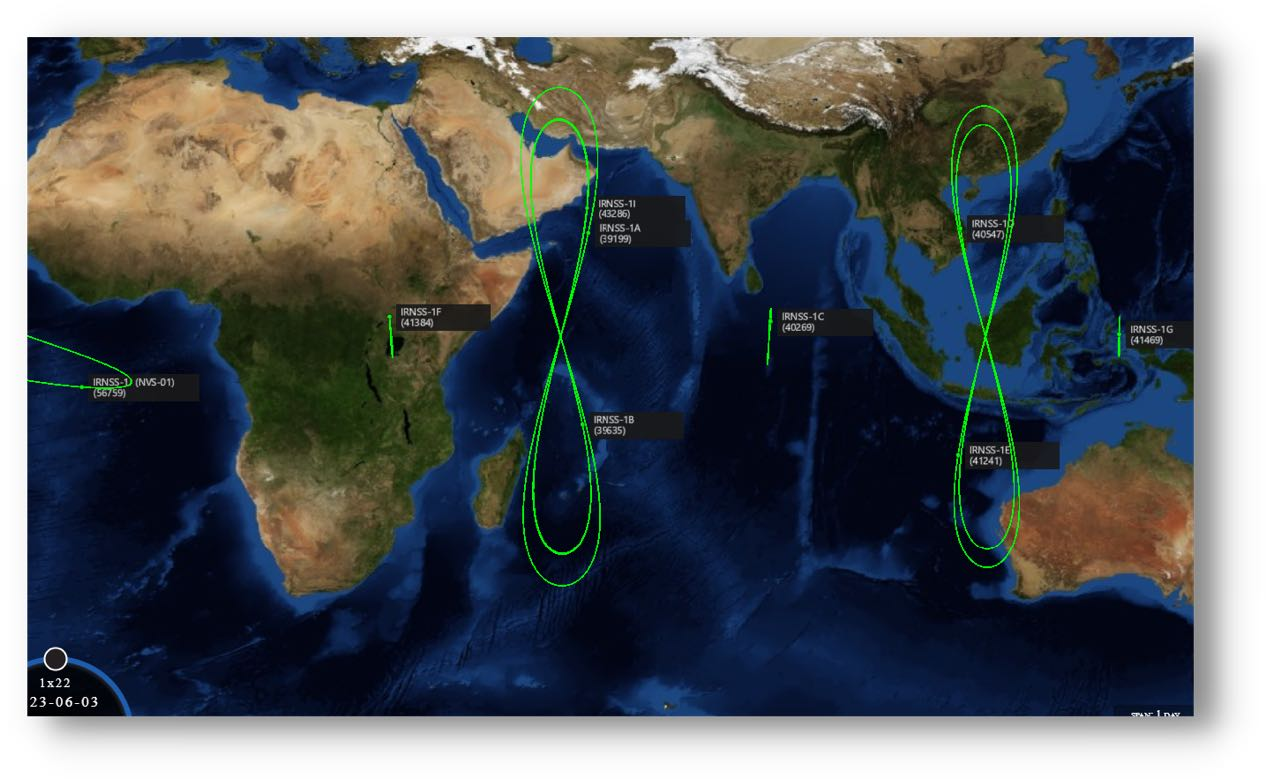

NavIC constellation (NVS-01 pending orbit circularization)

NVS-01 launch from the Satish Dhawan Space Centre

NVS-01 prepared for launch

NVS-01 satellite deployment

03 Flash Archive · Members Only

North Korea Attempts Satellite Launch

30 May 2023: North Korea attempted its first satellite launch attempt in seven years, but the Chollima-1 rocket failed to deploy the Malligyong-1 satellite.

Author Greg Gillinger Published August 1, 2025

30 May 2023: North Korea attempted its first satellite launch attempt in 7 years, with a Chollima-1 rocket failing to deploy the Malligyong-1 satellite. The rocket lifted off from the Sohae Satellite Launching Ground and appears to have suffered an anomaly around the time of first stage separation and did not achieve its planned orbit. Debris from the launch fell into the sea off the coast of South Korea, where it has been recovered by South Korean forces.

– Malligyong-1 was believed to be an electro-optical imaging spacecraft. The satellite’s name translates as “great mirror” or “telescope”.

– North Korea’s National Aerospace Development Administration (NADA) claimed that Malligyong-1 would be able to image the Earth at resolutions of up to 20m using a monochromatic camera and the spacecraft would be equipped with multispectral imaging and video transmission system. The satellite was supposed to orbit at an altitude of 500km.

– The rocket splashed 200km from Eocheong into a location consistent with the planned stage 1 impact area. The resulting debris fell into the Yellow Sea. It appears the Chollima-1 SLV first stage may be powered by dual nozzle RD-250 derived liquid fuel engine as fitted to North Korea’s Hwasong-15 ICBM.

– Hazard areas announced ahead of the launch indicated a high-inclination orbit was being targeted, with the rocket initially flying south-southwest from its launch site before making a dog-leg maneuver to the south-southeast after the separation of the first stage. This trajectory would have resulted in an orbital inclination of about 76° – although a further dogleg during third-stage flight could have increased the inclination for a more polar or sun-synchronous orbit.

– Although the timing is almost certainly a coincidence, Wednesday’s launch is the second from the Korean peninsula in less than a week with South Korea launching one of its Nuri rockets last Thursday.

– North Korea’s rocket and the satellite are brand-new, suggesting their capacity and other technical details are shrouded in mystery.

– Following the failure, North Korea stated their intent for another launch as soon as possible, once an investigation has been completed and any necessary tests completed.

– North Korea has been developing satellite reconnaissance capabilities for some time, with hardware being test-flown during missile tests last year. In March 2022 the country’s leader, Kim Jong Un, toured the Sohae launch site. He also recently toured the satellite manufacturing facility. Video.

Sohae Satellite Launching Ground location

North Korea’s Chollima-1 launch attempt

Chollima-1 planned trajectory and hazard areas

Recovered debris from the North Korean satellite rocket

Kim Jong Un tours North Korea’s satellite manufacturing facility

04 Flash Archive · Members Only

Report: Large Constellations of Low-Altitude Satellites

May 2023: The US Congressional Budget Office (CBO) published a primer on the increasing use of LEO satellite constellations. Great article for those new to space operations as well as a look at the capability and economic factors driving pLEO constellation development/deployment. I found the primer to be a great…

Author Greg Gillinger Published August 1, 2025

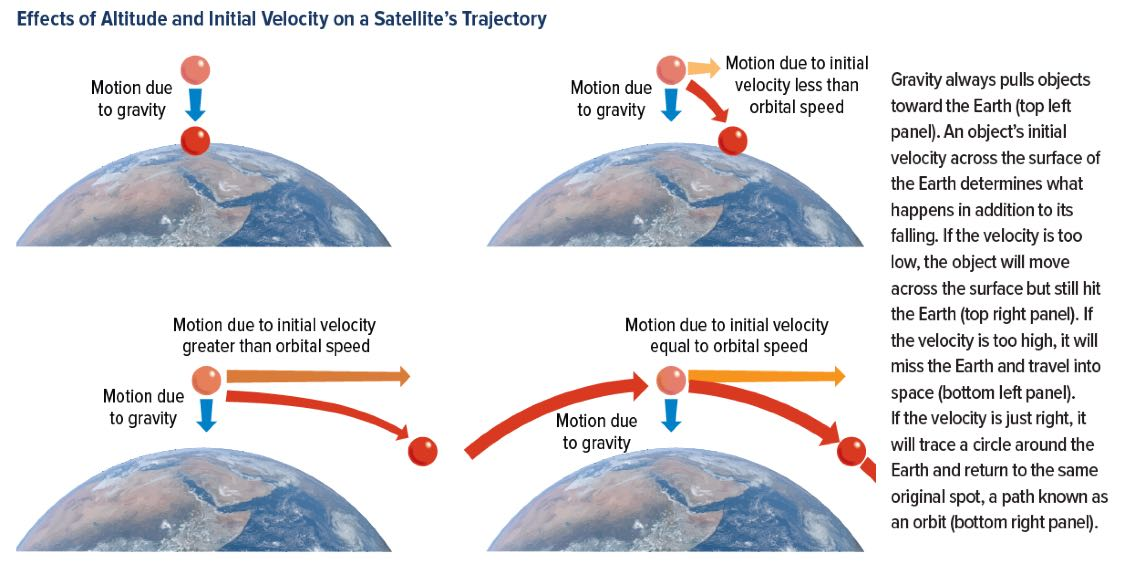

Effects of altitude and initial velocity on a satellite’s trajectory

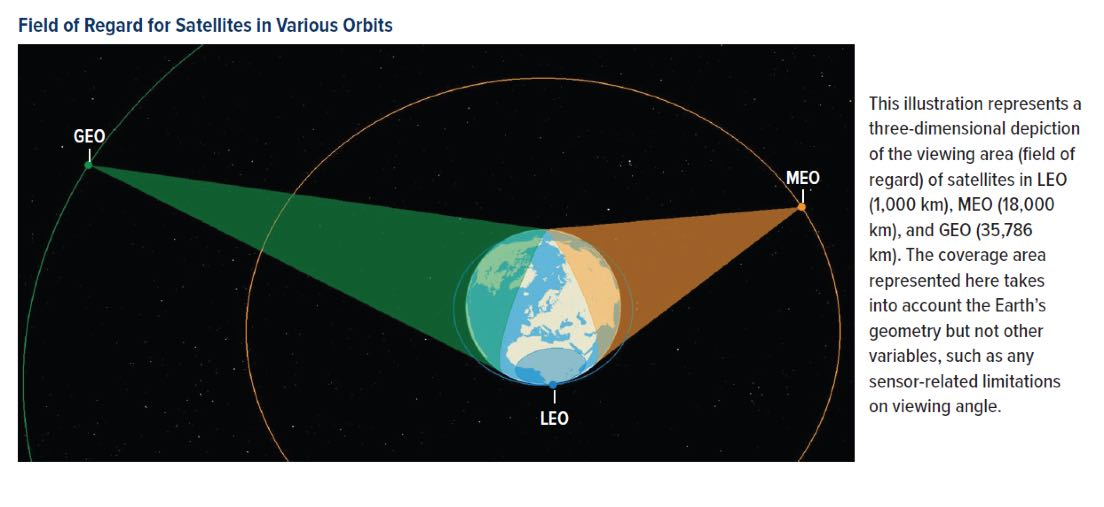

Field of regard for satellites in various orbits

Fields of view and fields of regard for sensors and satellites in various orbits

Coverage of three illustrative constellations

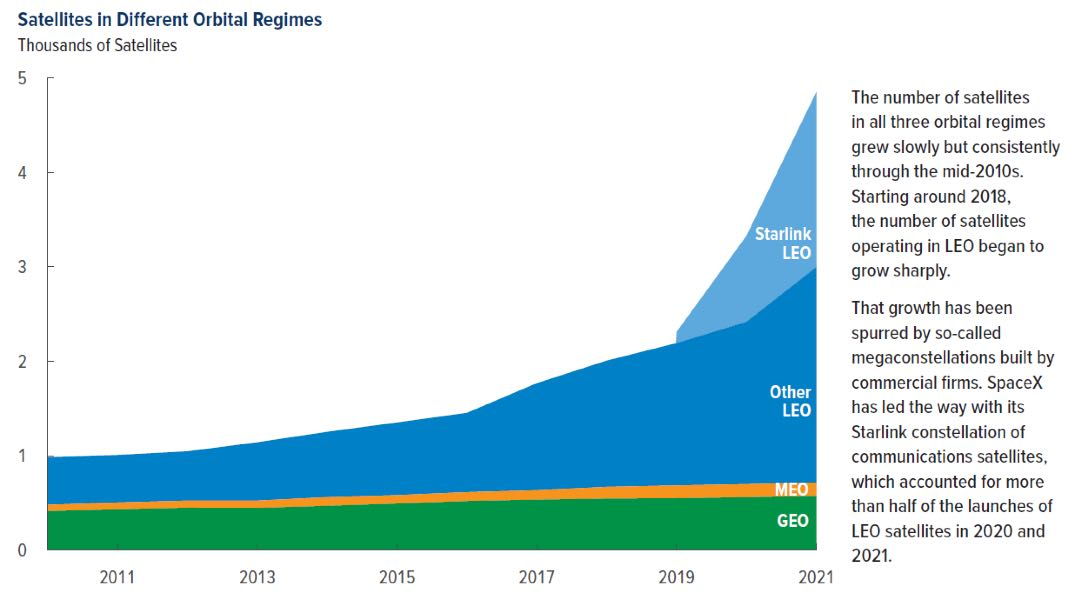

Satellites in different orbital regimes

Diffraction-limited resolution for various aperture sizes

Objects orbiting the Earth

Time to transmit a signal 13,000 kilometers across the Earth’s surface

05 Flash Archive · Members Only

On Orbit Updates: Tianhui 2-02A & 02B

- China maneuvered Tianhui 2-02A & 02B, two Synthetic Aperture Radar (SAR) imaging satellites, to within 1km of one another. -Orbital graphs indicate Tianhui 2-02A maneuvered into proximity with 2-02B, after making multiple altitude changes whereas the SMA for 2-02B remained unchanged. - Tianhui 2-02A and 2-02B…

Author Greg Gillinger Published August 1, 2025

– China maneuvered Tianhui 2-02A & 02B, two Synthetic Aperture Radar (SAR) imaging satellites, to within 1km of one another.

-Orbital graphs indicate Tianhui 2-02A maneuvered into proximity with 2-02B, after making multiple altitude changes whereas the SMA for 2-02B remained unchanged.

– Tianhui 2-02A and 2-02B launched on 18 Aug 2021 on a Long March 4B from Taiyuan.

– The Tianhui 2 (“Sky drawing”) series are a quasi-secretive group of Earth observation satellites designed to monitor Earth’s surface. They are constructed by Dong Feng Hong and operated by the People’s Liberation Army.

– The TH-2 satellite system is China’s first microwave surveying satellite system based on synthetic aperture radar technology.

– The satellites are in a sun synchronous orbit as is typical for imaging satellites.

– This activity is rare for these types of satellites.

– One possible explanation is the two satellites will work cooperatively. As an example, China recently launched 4 SAR satellites that will fly in formation. The PIESAT (also known as Hongtu-1 01A-D) spacecraft are X-band synthetic-aperture radar satellites with a resolution of 0.5-5m.

-The four PIESAT satellites form a single module. The module consists of one main satellite and three sub-satellites oriented around the main module. The main satellite will act as the transmitter, while the three passive satellites are the receivers.

-As of 3 Jun the PIESAT satellites have not maneuvered into formation.

-Other potential rationale is a secondary mission or using one satellite to image the other (unknown if this is a possibility with a SAR imager).

-Based on 3 Jun orbital parameters, the satellites will remain .5km from one another with a relative velocity of .001km/sec for the next several days.

Multiple SMA changes for Tianhui 2-02A

Steady-as-she-goes: no SMA changes for Tianhui 2-02B

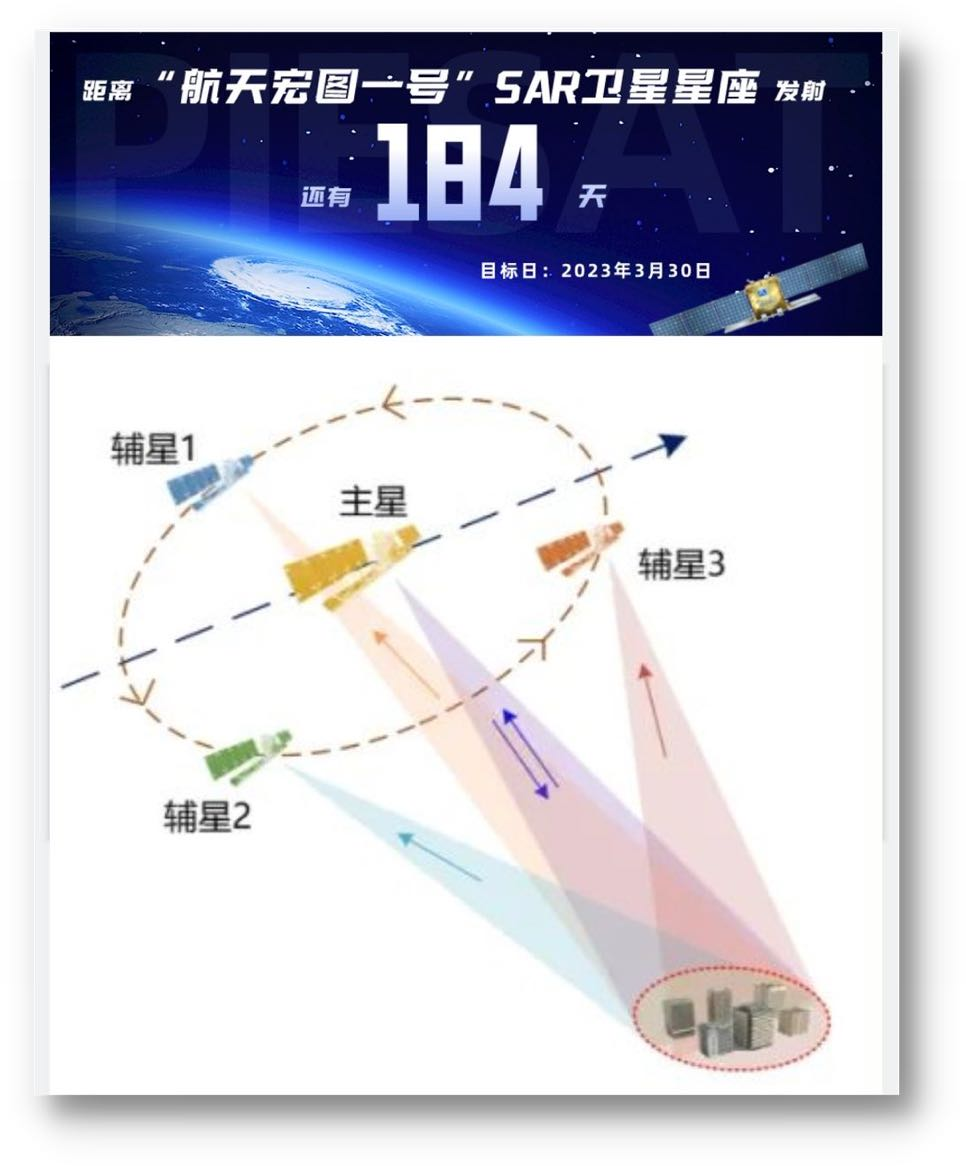

Rendering of PIESAT operations

Settling in: Tianhui 2-02A is approximately 0.5 km from 2-02B with relative velocity approximately 0.001 km/sec

06 Flash Archive · Members Only

On Orbit Updates: Chuangxin 16A & 16B

- China maneuvered its experimental Chuangxin 16A & 16B satellites to rendezvous with one another in late-May to early-Jun. - Based on 27 May orbital parameters, the satellites were to close within .002km and relative speed .002km/sec. -On/about 30 May, Chuangxin 16A altered its SMA slightly (~.1km) and, as a result…

Author Greg Gillinger Published August 1, 2025

– China maneuvered its experimental Chuangxin 16A & 16B satellites to rendezvous with one another in late-May to early-Jun.

– Based on 27 May orbital parameters, the satellites were to close within .002km and relative speed .002km/sec.

-On/about 30 May, Chuangxin 16A altered its SMA slightly (~.1km) and, as a result, the two satellites began separating.

-As of 3 Jun the two satellites are 62km apart with a relative velocity of .07km/sec.

– China launched Chuangxin 16A & 16B on 23 Aug 2022 China, using a Kuaizhou-1A from Xichang. Both spacecraft were developed by the Chinese Academy of Sciences (CAS). Launch Video.

– The spacecraft will reportedly be used for verification of new technologies. Few details were publicly released on the Chuangxin-16 and there was some confusion over the number of satellites carried to orbit (either 1 or 2).

– The Chuangxin (translated as “innovation”) payload is meant for technology research…one possible demonstration would be automated undocking, rendezvous, and re-docking of these two satellites.

– Both satellites are in a 29° inclined orbit and it appears that Chuangxin-16A has routinely decreased its SMA since Jan 2023. Chuangxin-16B does not appear to have changed its SMA or other parameters since being placed into orbit in Aug 2022.

-Conducting proximity operations between two technical verification satellites, while unusual, is not unexpected and appears to be consistent with stated mission purposes (vague as they were).

Chuangxin-16A step-down SMA pattern

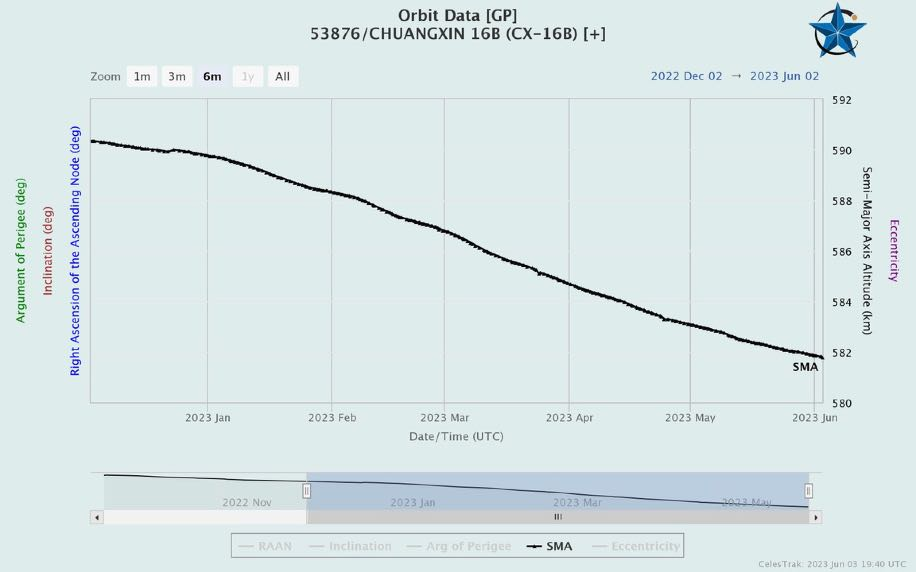

Chuangxin-16B minimal SMA maneuvering

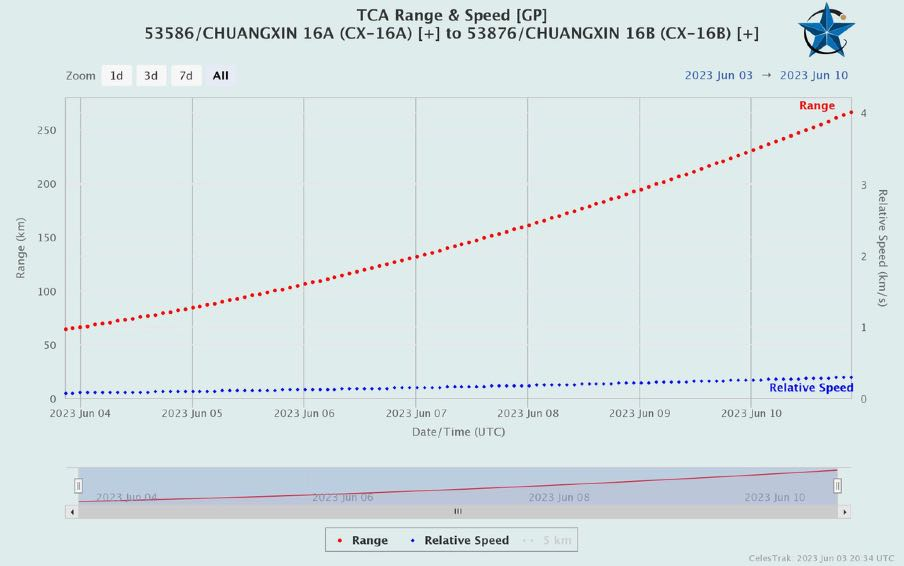

Projected increasing separation between Chuangxin-16A and 16B

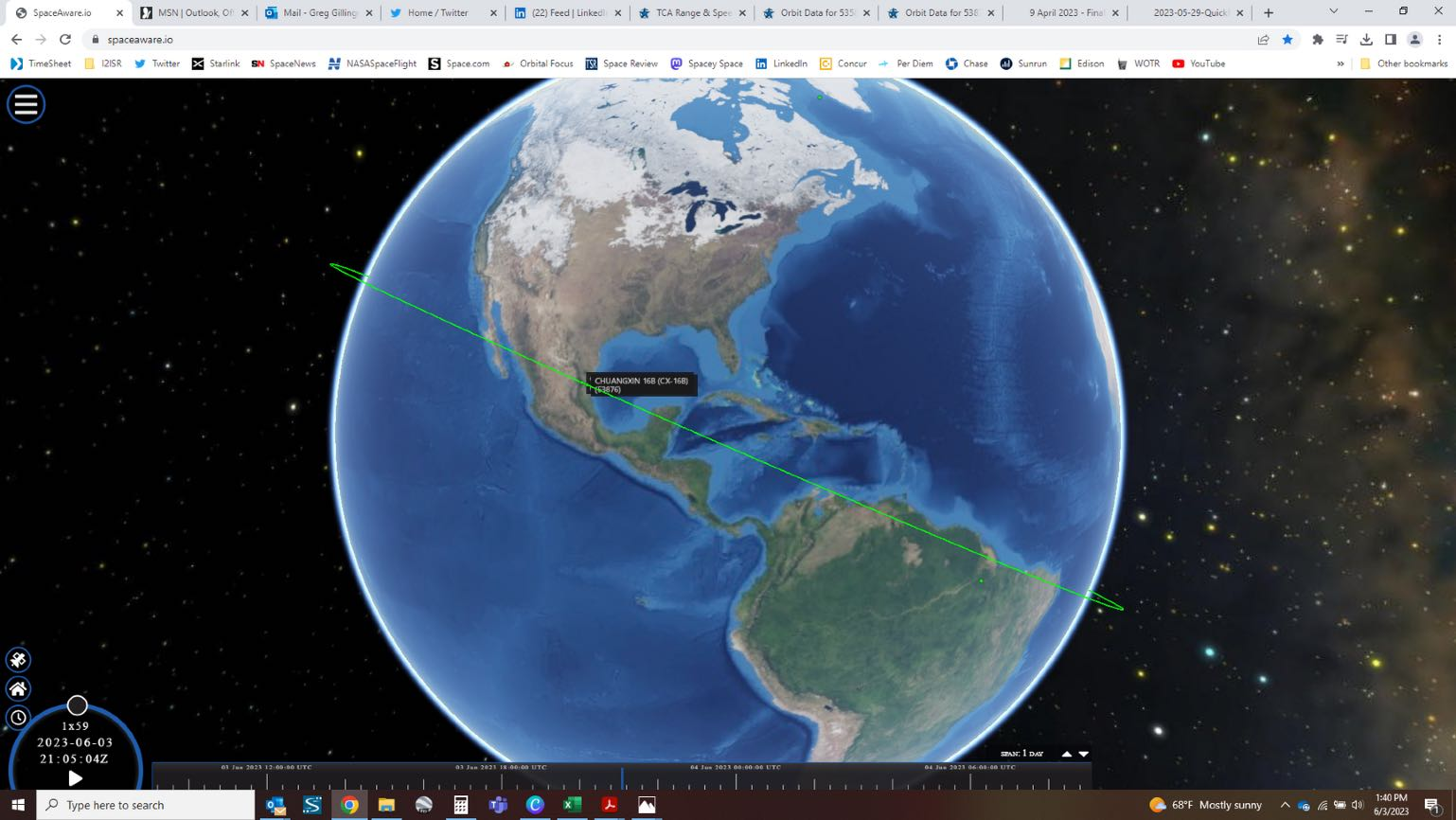

Chuangxin-16A and 16B orbit

08 Flash Archive · Members Only

On Orbit Updates: On the Road Again, SJ-20 heads East

-Between 25-26 May 2023, China's SJ-20, believed to be an experimental communications satellite, decreased its orbit ~55km, initiating an eastward drift. - China launched the SJ-20 on 27 Dec 2019 on the massive CZ-5 launch vehicle. SJ-20 is China's largest communications satellite (8,000+kg) and uses the DFH-5 bus. -…

Author Greg Gillinger Published August 1, 2025

-Between 25-26 May 2023, China’s SJ-20, believed to be an experimental communications satellite, decreased its orbit ~55km, initiating an eastward drift.

– China launched the SJ-20 on 27 Dec 2019 on the massive CZ-5 launch vehicle. SJ-20 is China’s largest communications satellite (8,000+kg) and uses the DFH-5 bus.

– In Aug 2020, USA 271, one of the US Geosynchronous Space Situational Awareness Program (GSAPP) satellites, approached SJ-20. However, the Chinese clearly detected the US satellite and rapidly moved SJ-20 away. Watch Video.

–Almost exactly one year ago, SJ-20 relocated from 87.5°E to China’s ITU reserved 33.5°E.

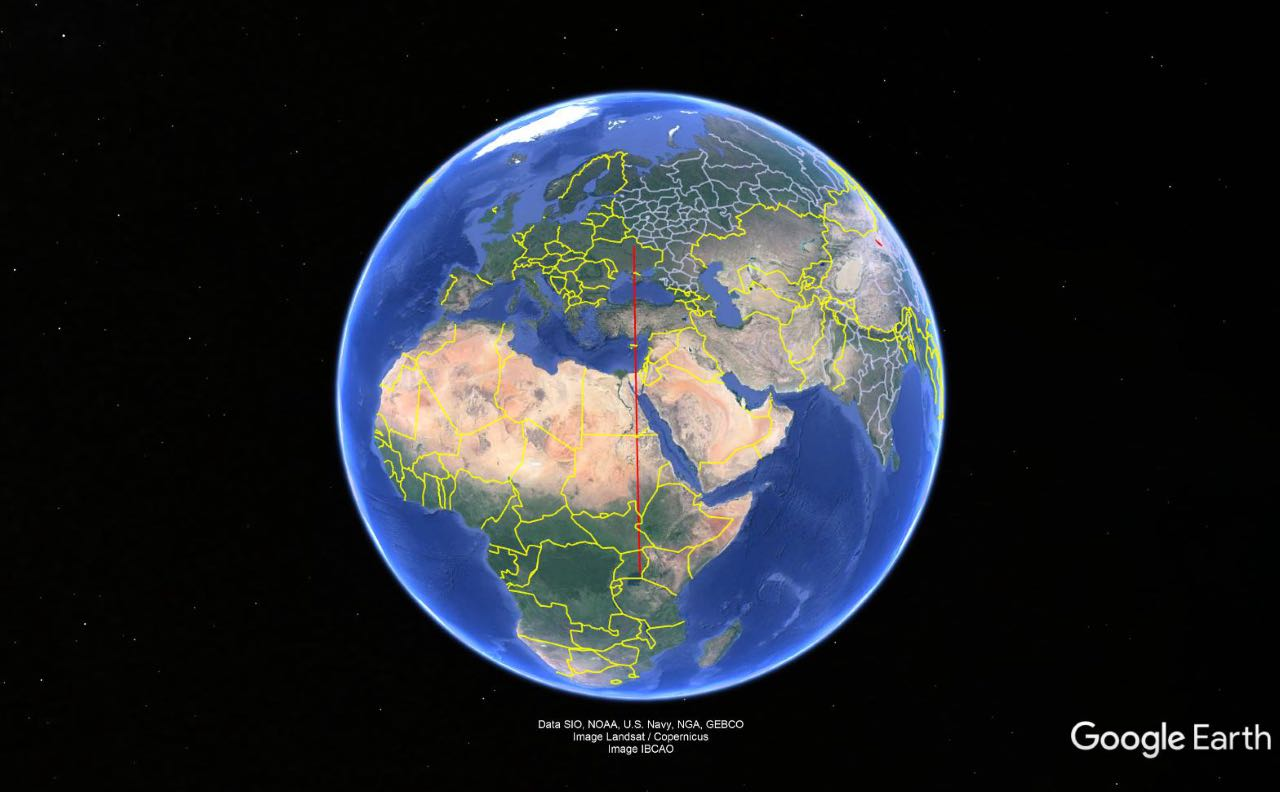

– Interestingly 33.5°E is due south of Ukraine, between Kyiv and Kharkiv.

-Given the experimental nature of SJ-20, it is unlikely it was providing any communications support to any Russian combatants.

-China may have stationed SJ-20 over an active conflict to test other capabilities.

-SJ-20 subsequently raised its orbit ~20km on 3 Jun, slowing its drift. 3 Jun 2023 observations placed SJ-20 at 39.9°E.

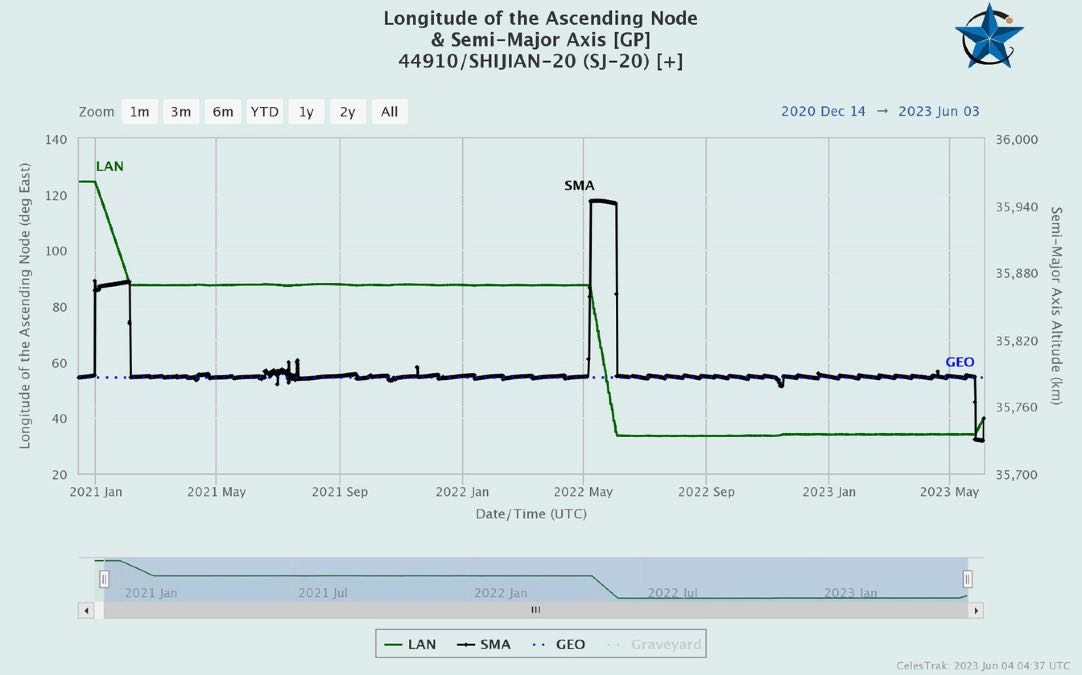

SJ-20 relocation from 87.5°E to 33.5°E

SJ-20 at 33.5°E

SJ-20 at 39.9°E as of 3 June 2023

09 Flash Archive · Members Only

Pics o’ the week!

Space imagery and photographs featured in Issue 74.

Author Greg Gillinger Published August 1, 2025

Issue 74

Gone fishing: South Korean military released photos of the presumed debris of the North Korean satellite rocket

Russian GPS jamming around the Russia-Latvia border in Pskov Oblast on 29 May 2023

Roscosmos postponed the launch of Russia’s lunar lander Luna-25 from July to August 2023

Shenzhou-16 crew aboard China’s Tiangong space station

China launches Shenzhou-16, briefly putting six taikonauts in orbit, including the first civilian

Russian space and rocket engineers recruited for the Uranus army battalion

Low confidence: first partial photo of China’s spaceplane

Spain becomes the 25th nation to sign the Artemis Accords
